How to Visualize System Components with PlantUML Component Diagrams

To visualize system components using PlantUML Component Diagrams, you’ll need to follow these steps. Component diagrams allow you to model and delineate the architecture of a larger system by showing how components interact with each other. Steps to Create a Component Diagram with PlantUML Set Up PlantUML To create component diagrams with PlantUML, you need: […]

To visualize system components using PlantUML Component Diagrams, you’ll need to follow these steps. Component diagrams allow you to model and delineate the architecture of a larger system by showing how components interact with each other.

Steps to Create a Component Diagram with PlantUML

Set Up PlantUML
To create component diagrams with PlantUML, you need:
- Java installed
- PlantUML jar file (or an IDE/plugin with integrated PlantUML support like IntelliJ or VSCode with the PlantUML extension)
- A rendering tool such as Graphviz (dot).
Start the Diagram
Specify the start of the diagram using:
```
@startuml
```
Define Components
Each component in the system can be represented with the component keyword. Give each component a meaningful name. Use square brackets or the as keyword to assign aliases/titles to the components:
```
component [Component A]
component "Database" as DB
```
Show Relationships Between Components
Use arrows (--> or --) to represent interfaces, dependencies, or flows between components:
```
[Frontend] --> [Backend]
[Backend] --> DB
```

Group Components (Optional)
Use package to group logically related components:

package "User Interface" {
   [Frontend]
   component "Authentication Module" as AuthModule
}

Icons for Common Elements (Optional)
You can use PlantUML’s built-in stereotypes to enhance clarity by showing commonly used icons:
```
component [Cloud Service] <<cloud>>
component [Database] <<database>>
```
End the Diagram
Close the diagram with:
```
@enduml
```

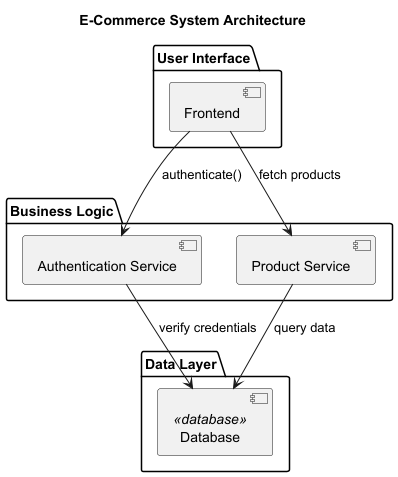

Example: Simple Component Diagram

Here’s a complete example that shows an e-commerce system with a frontend, backend, and database:

@startuml
title E-Commerce System Architecture

package "User Interface" {
    [Frontend]
}

package "Business Logic" {
    component "Authentication Service" as AuthService
    component "Product Service" as ProductService
}

package "Data Layer" {
    [Database] <<database>>
}

[Frontend] --> AuthService : authenticate()
[Frontend] --> ProductService : fetch products
AuthService --> [Database] : verify credentials
ProductService --> [Database] : query data

@enduml

Render the Diagram

Run the PlantUML jar file or use an IDE plugin to generate the component diagram as an image (PNG, SVG, etc.).
Use online tools such as PlantUML Server or integrated plugins in IDEs.

Output

The diagram will illustrate:

Frontend interacting with services in the backend.
Backend services communicating with the database.
Logical groupings (packages) of components.

By following these steps, you can easily model and abstract complex systems to identify dependencies, cohesion, and interactions clearly.
